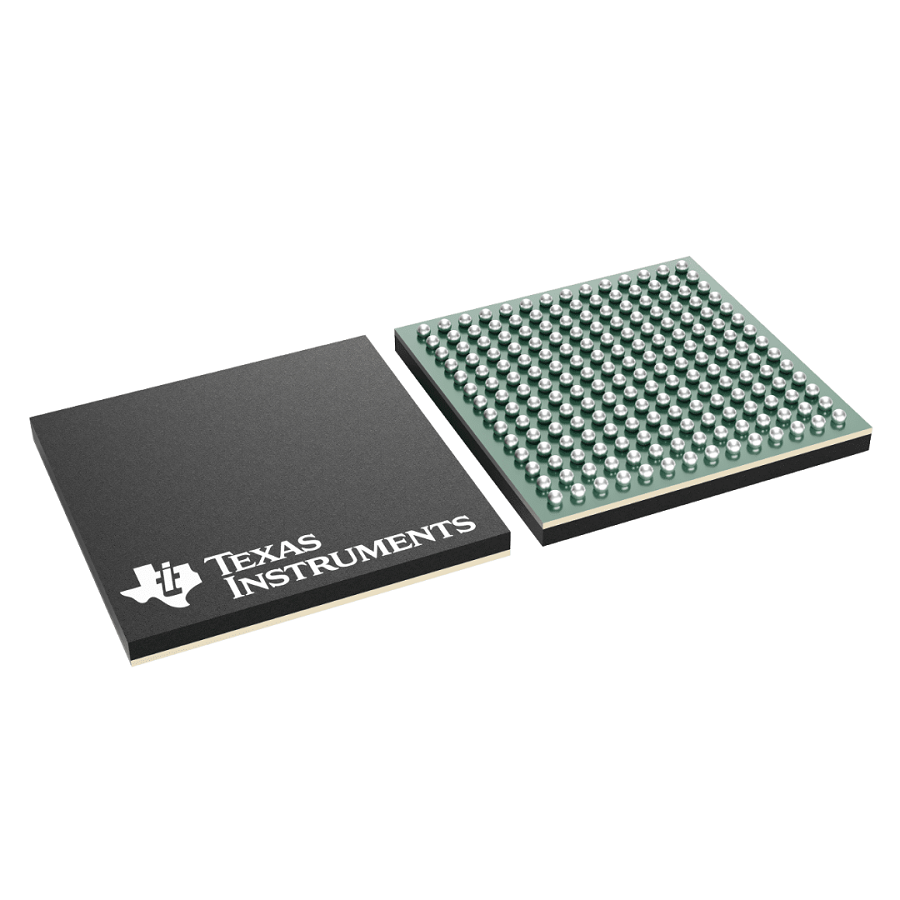

ADS5402IZAY
Manufacturer:
Texas Instruments
Mfr.Part #:
ADS5402IZAY
Datasheet:
Description:
Analog to Digital Converters (ADCs) BGA-196 BGA number of channels:2 Number of Inputs:2 1.5 B 800 Msps Core Architecture:Pipelined
| Parameter | Value |
|---|---|
| Length | 12 mm |
| Width | 12 mm |
| Max Operating Temperature | 85 °C |
| Min Operating Temperature | -40 °C |
| Number of Pins | 196 |
| Height | 1.4 mm |
| Packaging | Tube |
| Thickness | 0.9 mm |
| RoHS | Compliant |
| Contact Plating | Copper, Silver, Tin |
| Features | Simultaneous Sampling |
| Core Architecture(core/core processor) | Pipelined |
| Interface | DDR, LVDS |
| Lifecycle Status | Active |
| Max Power Dissipation | 2.5 W |
| Power Dissipation | 2.18 W |
| Max Supply Voltage (DC) | 1.9 V |
| Number of Channels | 2 |
| Number of Bits | 12 |
| Number of Inputs | 2 |
| Supply Type | Analog, Digital |
| Reference Type | External, Internal |
| Sampling Rate | 800 Msps |
| Integral Nonlinearity (INL) | 5 LSB |
| Number of Analog Inputs | 2 |
| Min Supply Voltage (DC) | 1.7 V |
| power consumption | 2.1 W |
| Resolution | 1.5 B |
| Number of A/D Converters | 2 |
| Signal to Noise Ratio (SNR) | 61.3 dB |
| Differential Nonlinearity | 0.8 LSB |
| Spurious-free dynamic range (SFDR) | 78 dB |
| Max Digital Supply Voltage | 1.9 V |
| Min Digital Supply Voltage | 1.7 V |
| Input Type | Differential |
| Interface Type(Data Interface) | Parallel |
| Analog Supply Voltage | 1.7 V to 1.9 V, 3.15 V to 3.45 V |
| Ratio - S/H:ADC | 1:1 |
| Configuration | S/H-ADC |
